Dry Bushes & Washers

TECHNICAL DETAILS

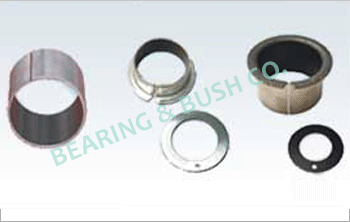

These are steel backed bronze Impregnated bushes mainly used for High Load application upto 250 N/mm² and temperature upto +280°C.
MDU is a composite material consisting of three layers viz., steel backing (Low Carbon Steel), A Porous Bronze (90% Cu & 10% Sn) sintered Matrix, overlaid with a mixture of PTFE (Poly Tetra Fluro Ethylene) and Lead.
Steel Backing provides the underlying strength while porous bronze sintered layer provides the strong mechanical bond for the impregnated
PTFE/LEAD mixture.

1. Dimensional Chart For MDU - DRY Bushes ( Plain Bushes )

2. Dimensional Chart For FDU - DRY Bushes ( Flanged Bushes )
